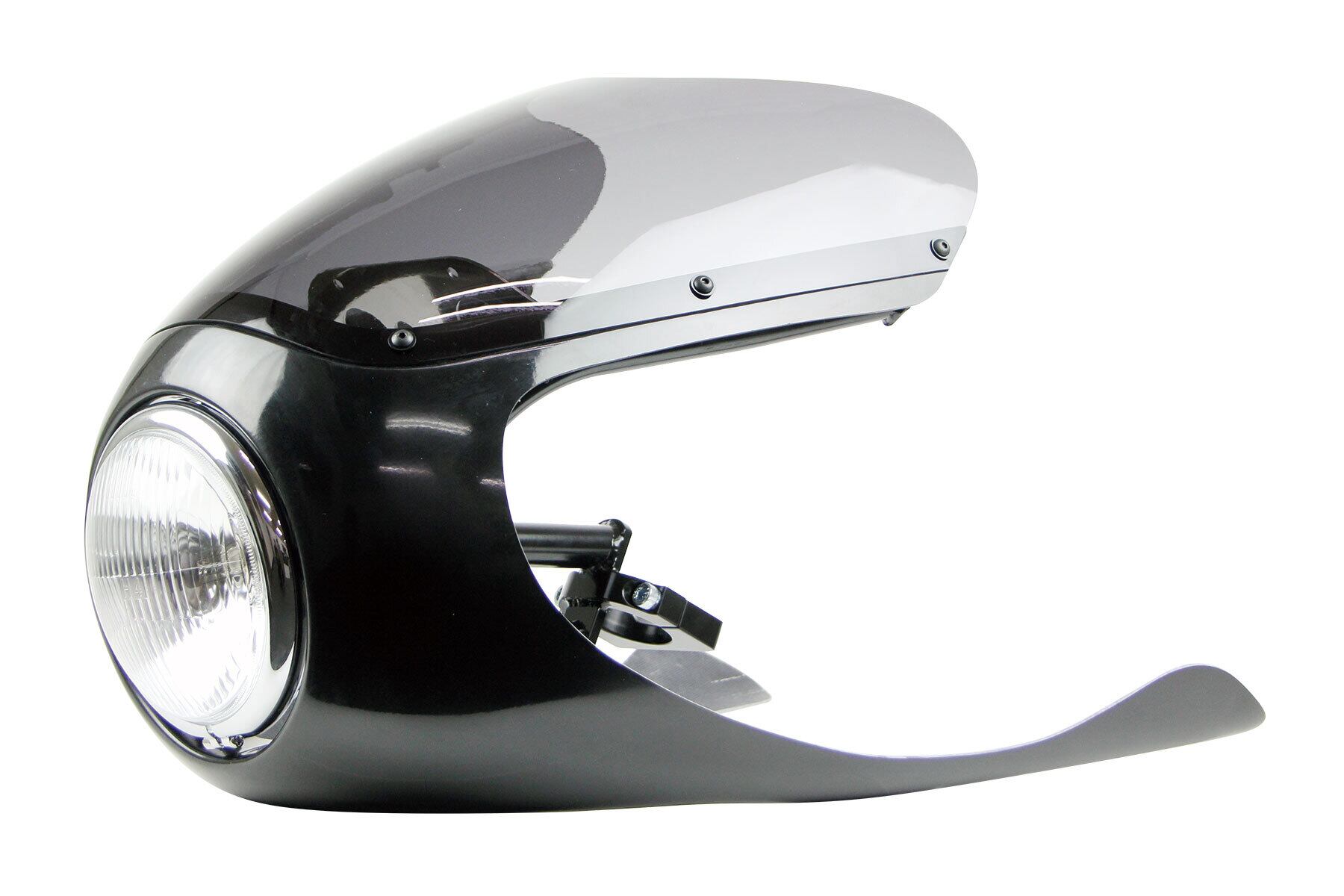

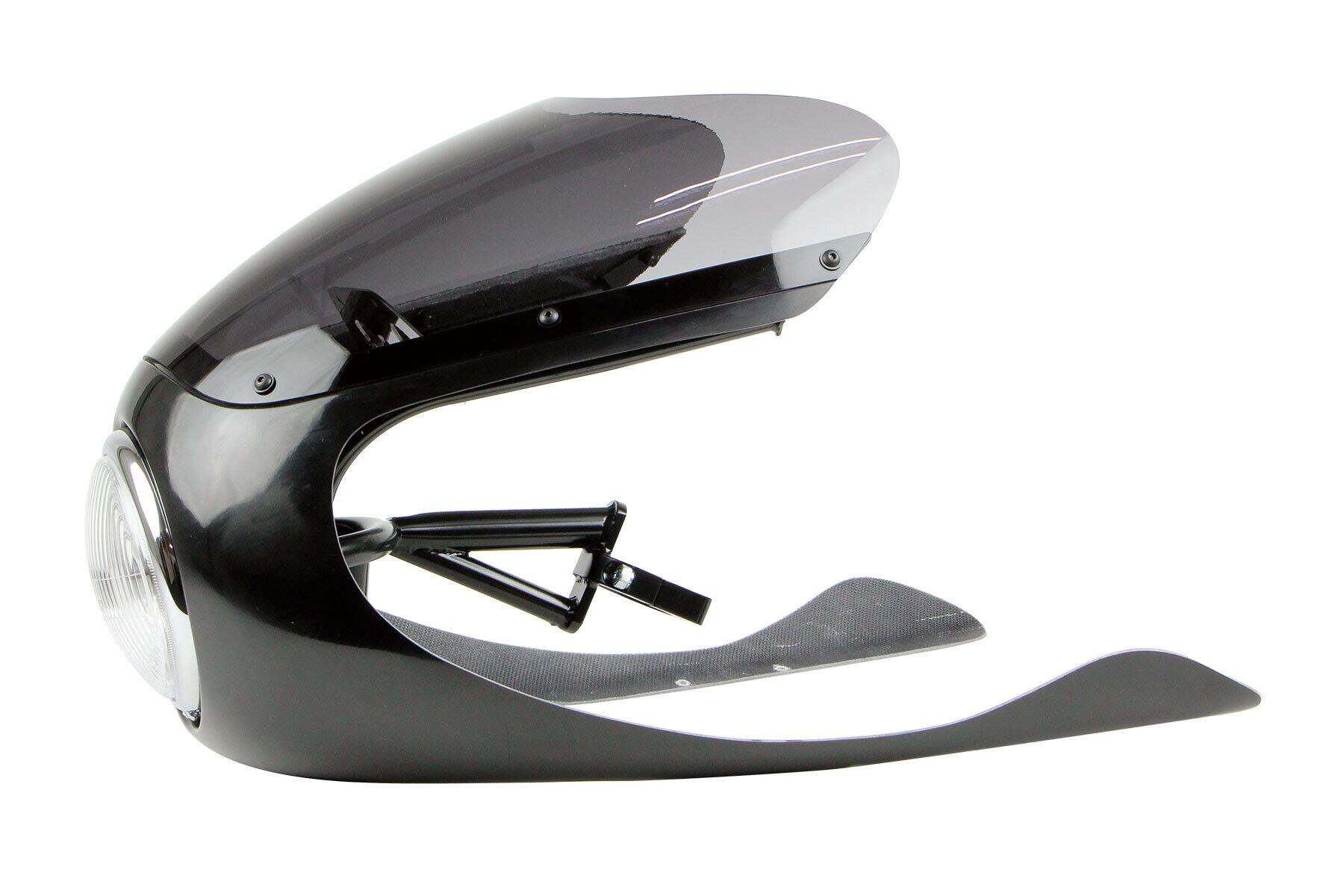

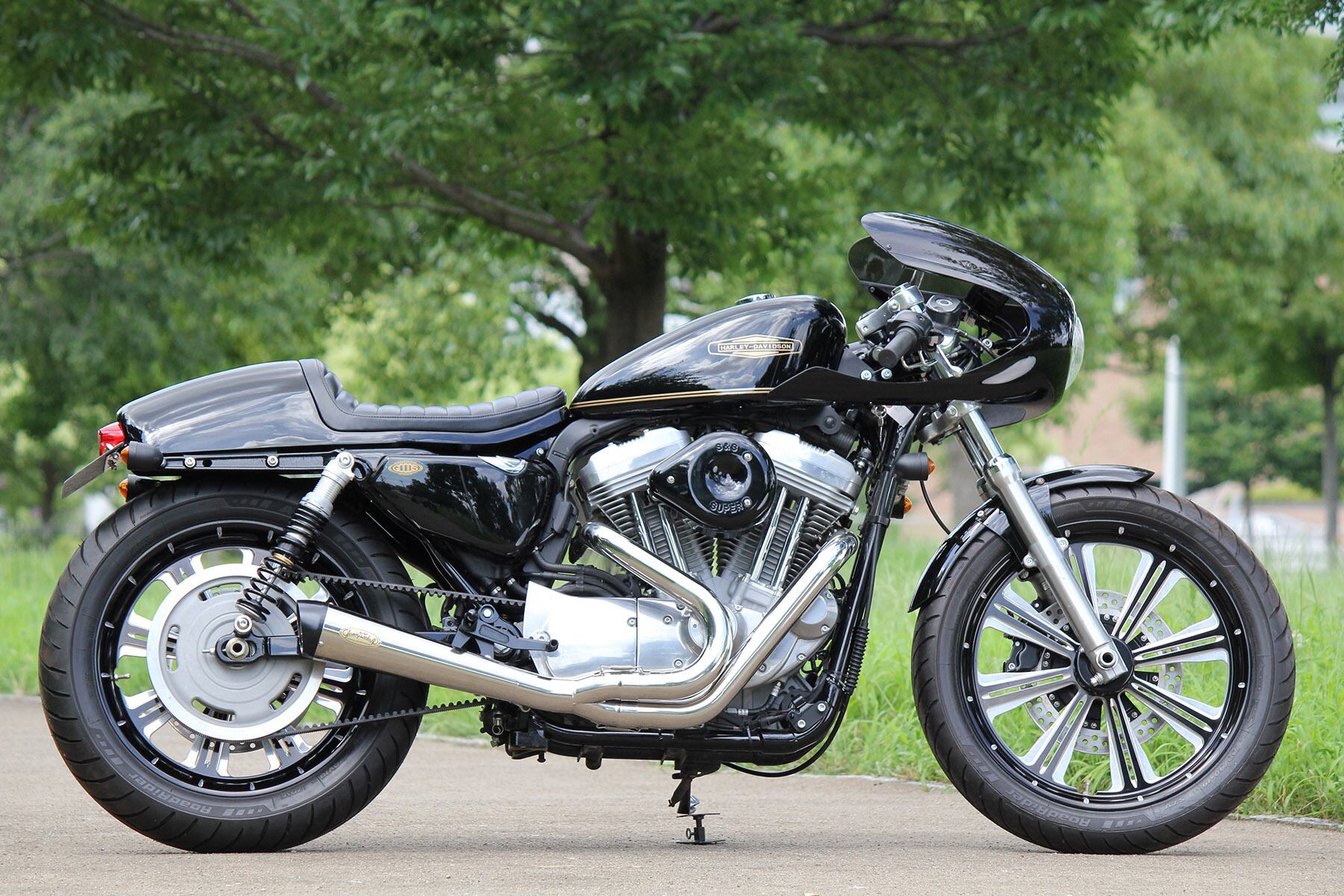

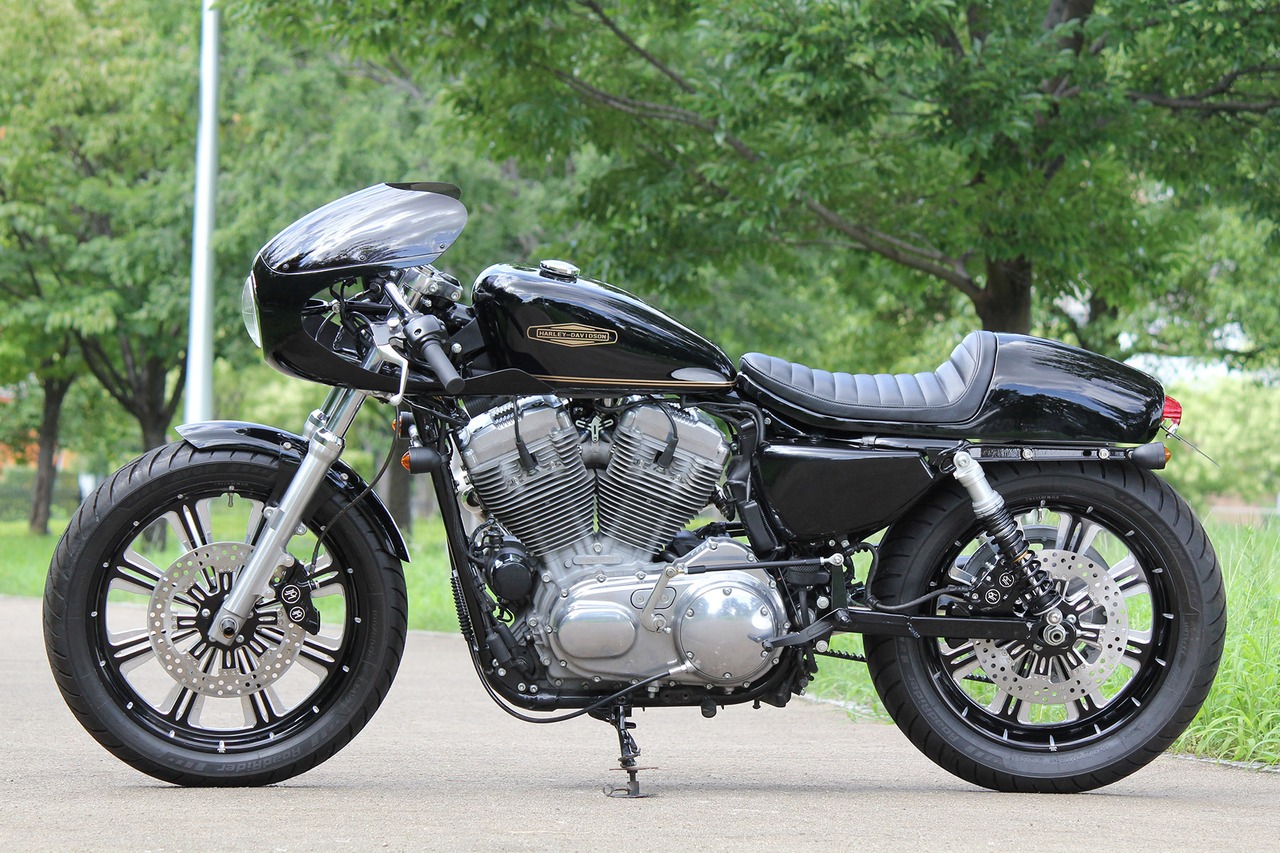

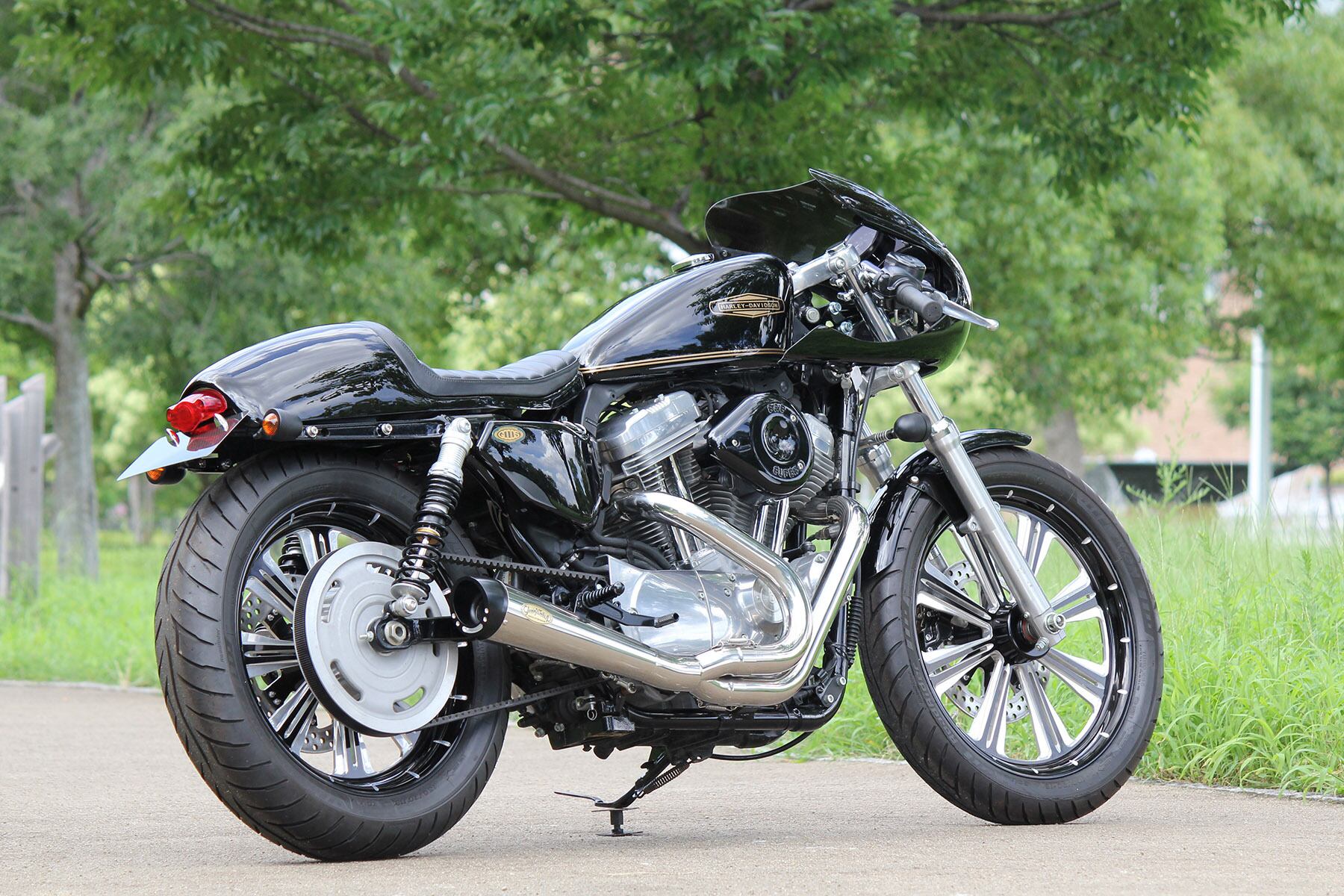

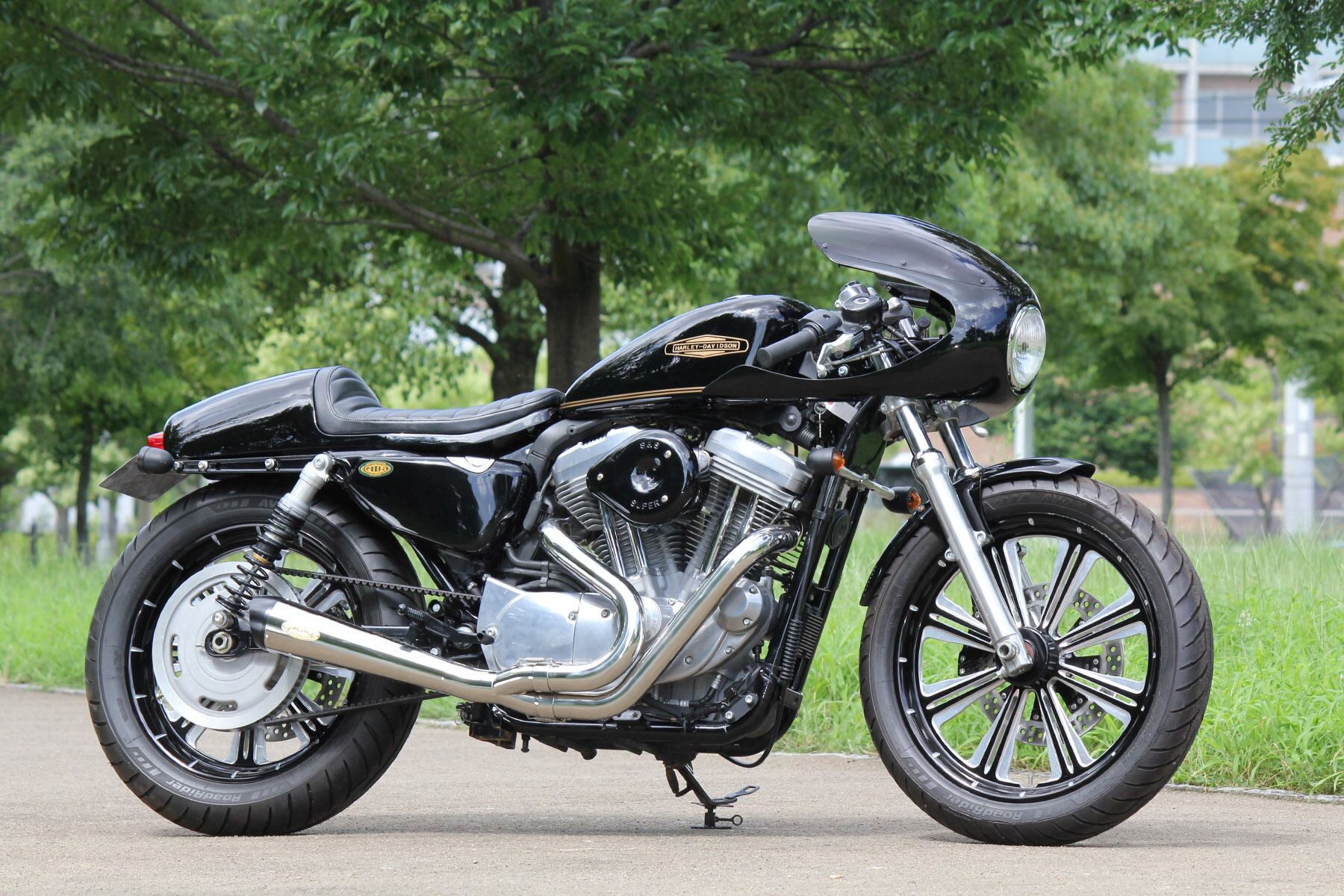

ARROW cowling kit for XL

Half cowl designed with the concept of slim and compact from the tip. bolt-on kit for XL.
Unprecedented slender cowl is ideal for sharp design.


[Material]
FRP
(Screen/ABS)
(Bracket/Steel,Aluminium)

[Size]
Maximum width: 410mm
Height: 350mm
Length of lower back and forth: 525mm
Light mounting area: 160mm

[Fitment]
XL


-------------------------------
[Points to note common to all years]

>>Regarding the parts that require modification and ingenuity

The headlights do not match the factory couplers, so wiring modifications are required.

>>Parts that may require modification

*The factory throttle cable may interfere depending on the angle. In this case, modification of the routing, fabrication of a guide, replacement of the throttle holder, or addition of a steering wheel stopper will be required.
*There is a possibility that the brake hose will need to be replaced due to a problem with the brake hose routing.
*The stock cable routing may not work properly or may interfere with the cable. It may be necessary to route the throttle wire from the left side of the neck, or the clutch cable from the right side of the neck, etc.
*Other additional modifications may be necessary to this product due to interference with other installation parts, etc. Please consider this product as a custom-made material.


-------------------------------
[04-14 model years, notes]
*Not available for vehicles other than those equipped with φ39mm narrow glide forks.

*Cannot be installed on 1200X, 1200C series (11'~), 1200T, 883L (11'~), and XR.
(All models from 04' to 10' except XR can be installed.)

*1200C(04'-10') cowl can be installed, but meter stay (sold separately) cannot be installed.
(because the meter case and indicator are different)


-------------------------------
[86-03 model years, notes]
*If the horn is attached to the left side of the stay on the front side of the tank, it needs to be relocated.

*The 86 and 87 have a different front,
Our handlebar stopper cannot be used unless you install the 39mm front fork around the 88-03 front.

*Since interference is expected, the handlebar stopper will need to be fabricated.


-------------------------------
[Compatibility with model year 15 and later]
We have not been able to confirm this with an actual vehicle at this time.
It may be possible to install the product, but it may require some modification when installing.






NOTE-------------------
*There are restrictions on shipping size depending on the country you are shipping to.
*If the size limit is exceeded, the shipment may not be possible.
*Gas tanks and suspensions may not be shipped by air.
*If the shipment is refused, we will change to shipping by sea.
*If a country cannot be shipped by sea, the order itself may be cancelled.

----------------------
[IF THE ITEM IS SOLD OUT]
Please click "request restock notification".
* Please feel free to contact us if you need to know the delivery date.
