74-Springer forks KIT SR400/500（DrumBrake） Stock-size Ball bearing
¥216,334 ($1,449.44)税込
SOLD OUT

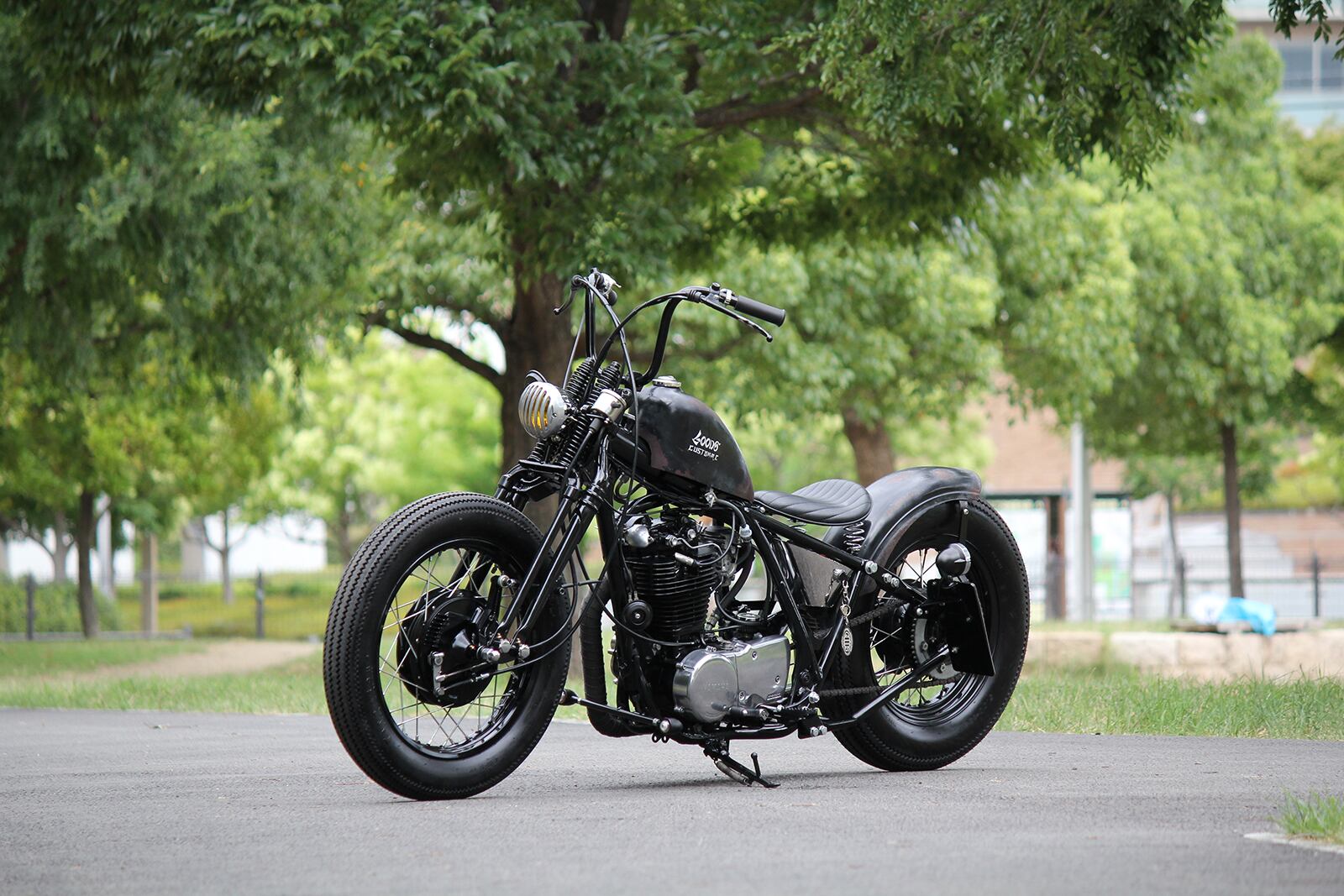

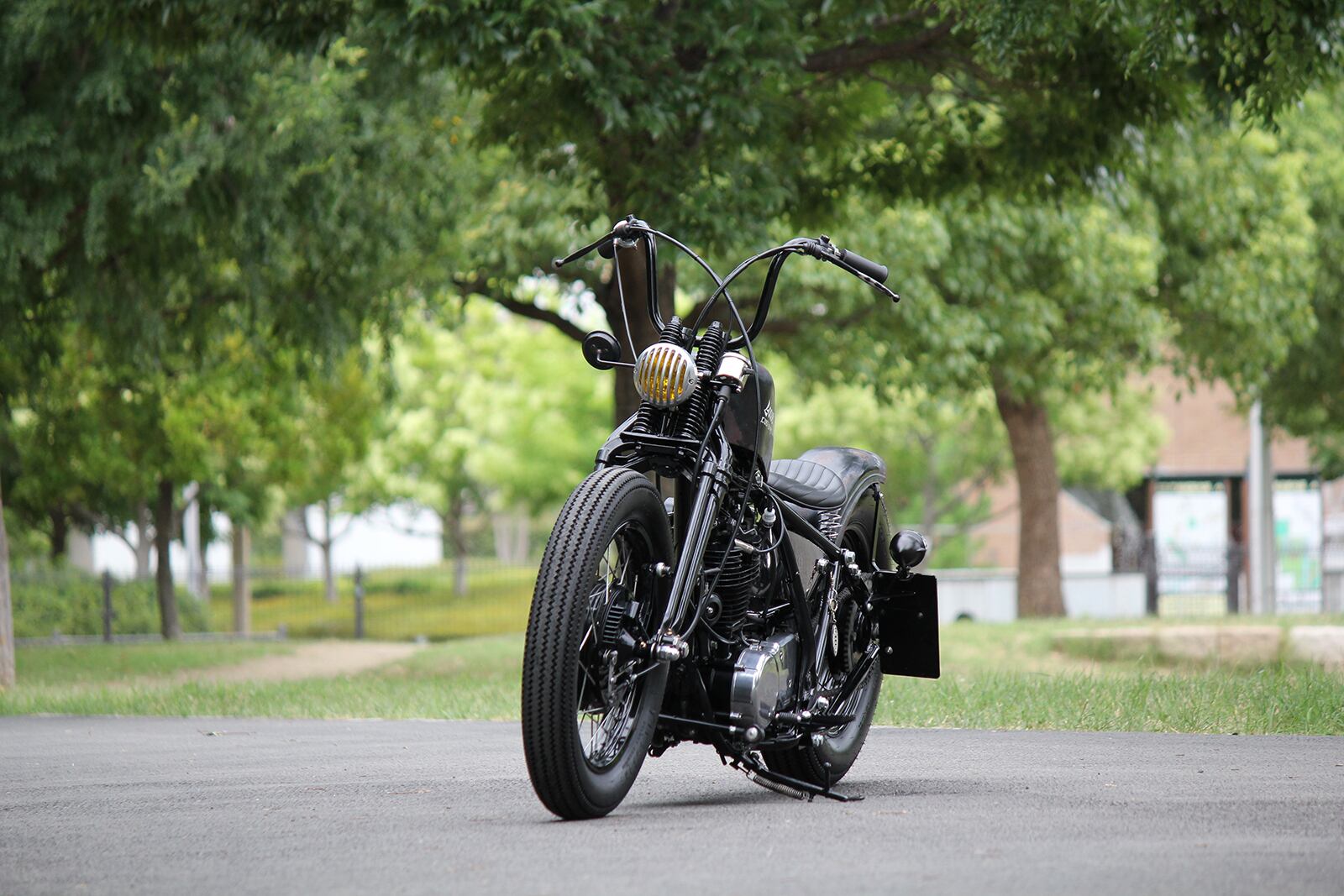

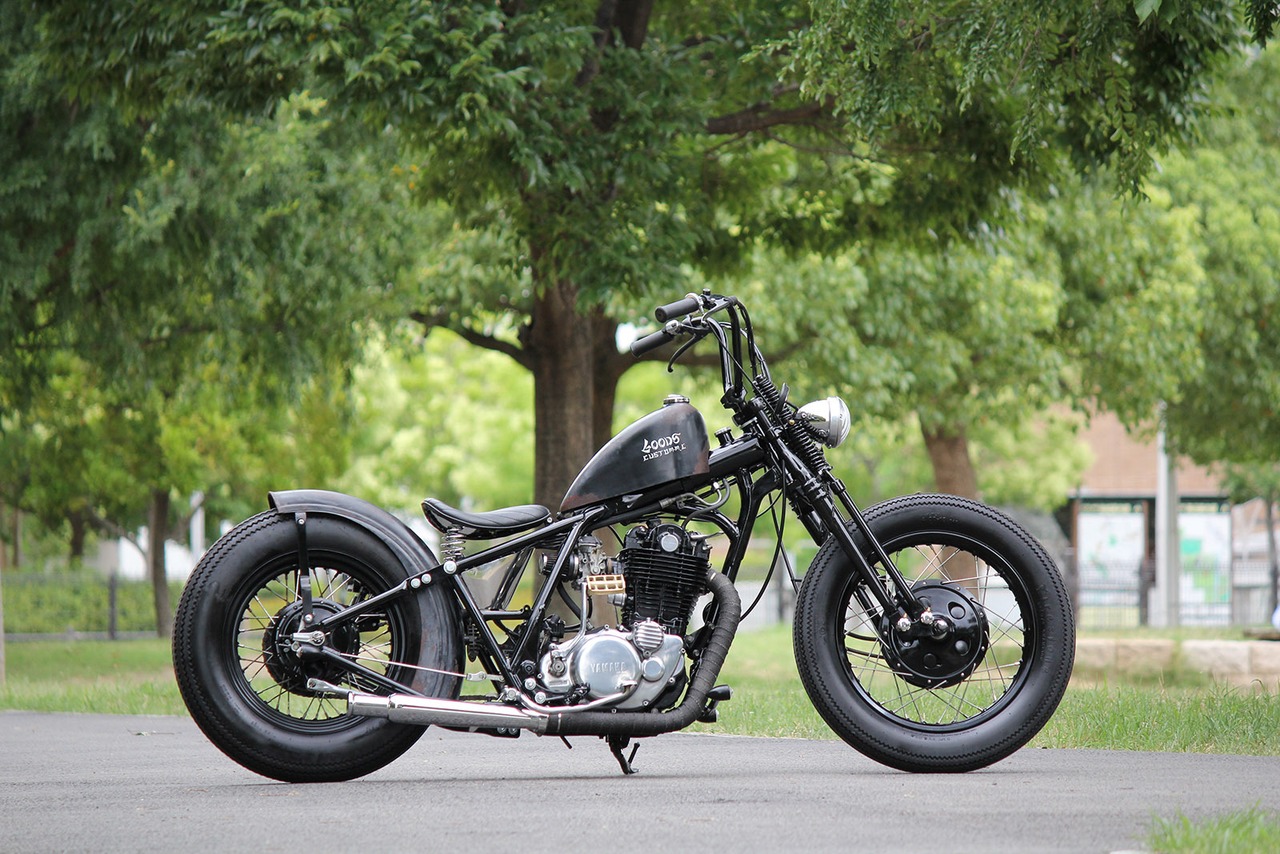

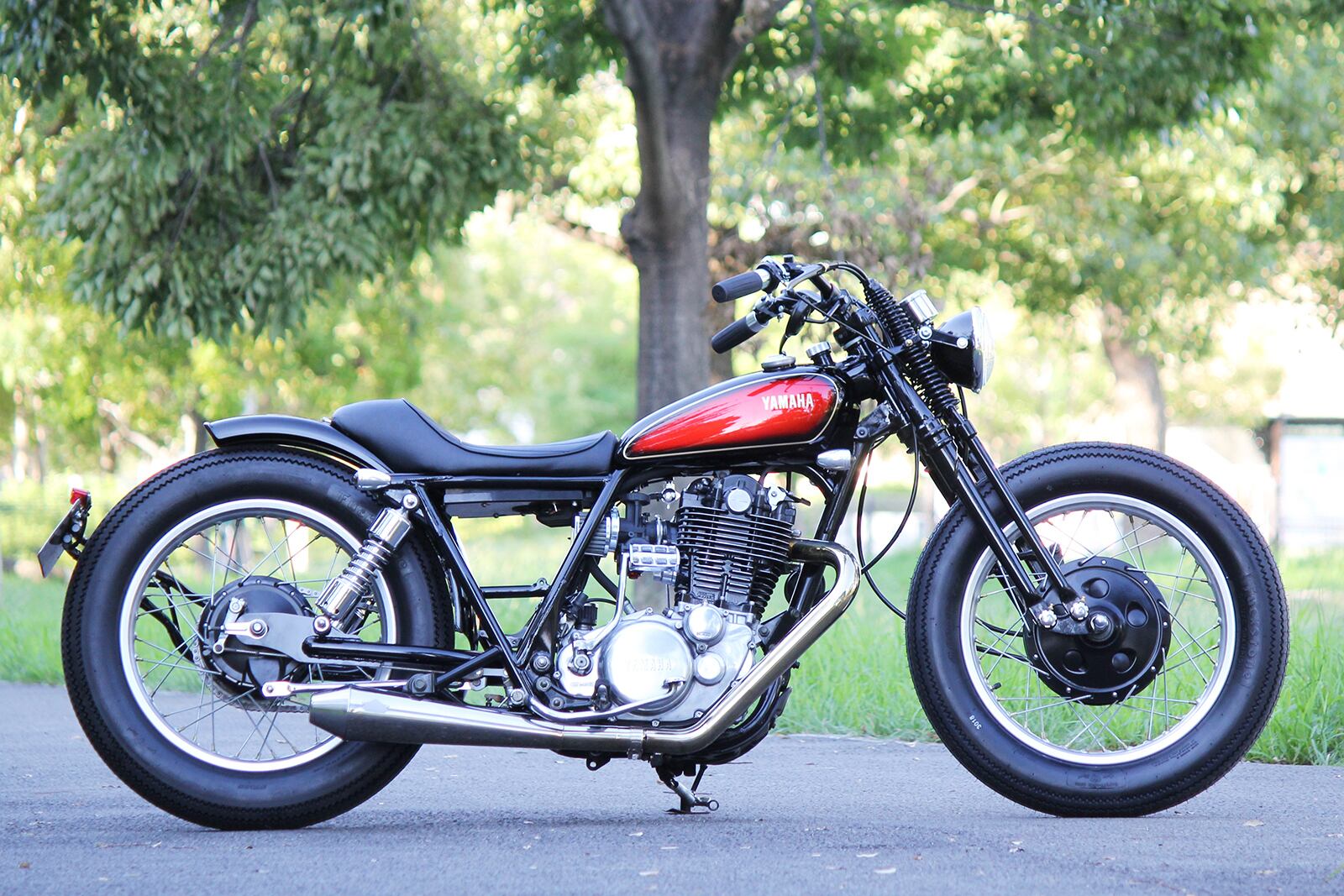

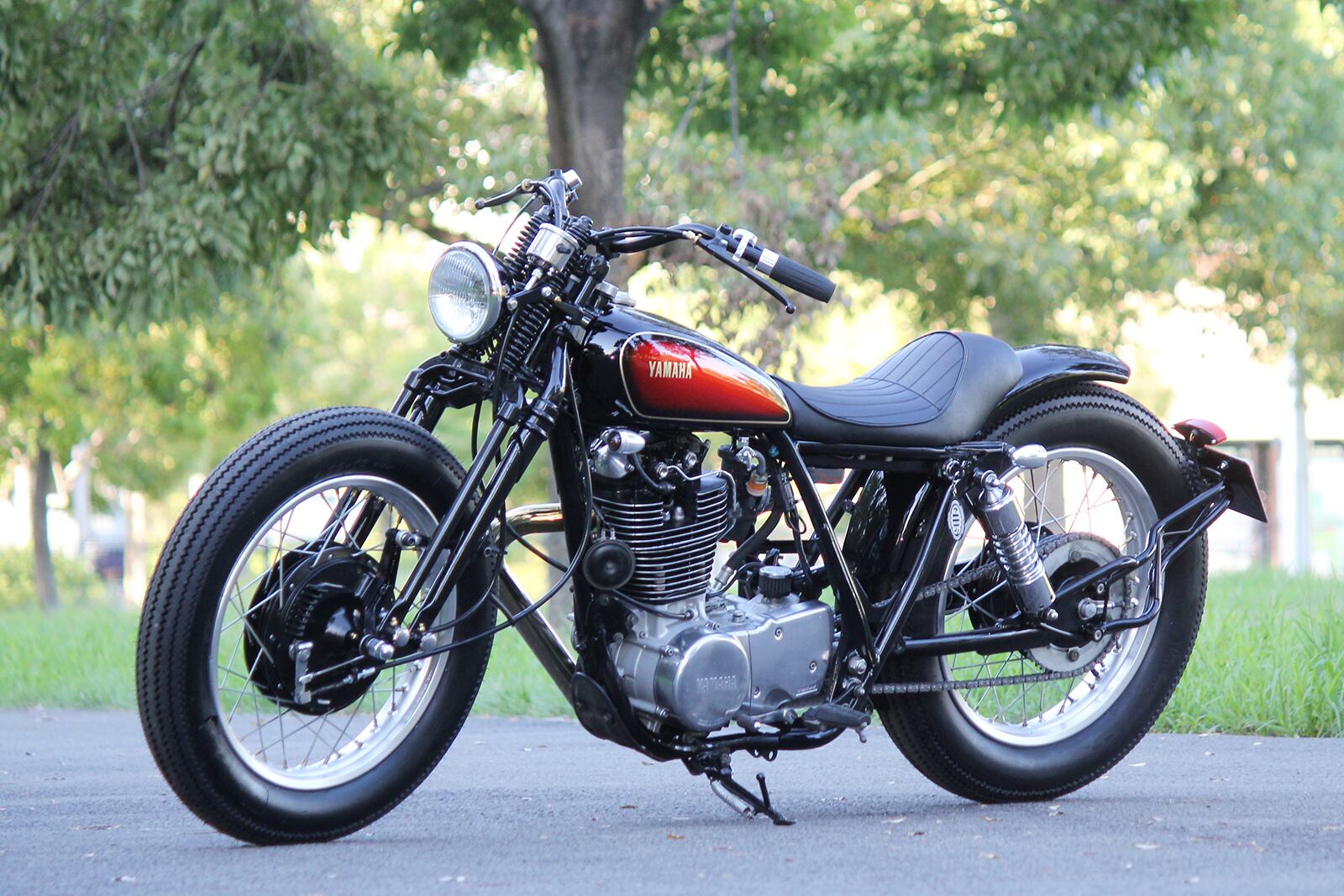

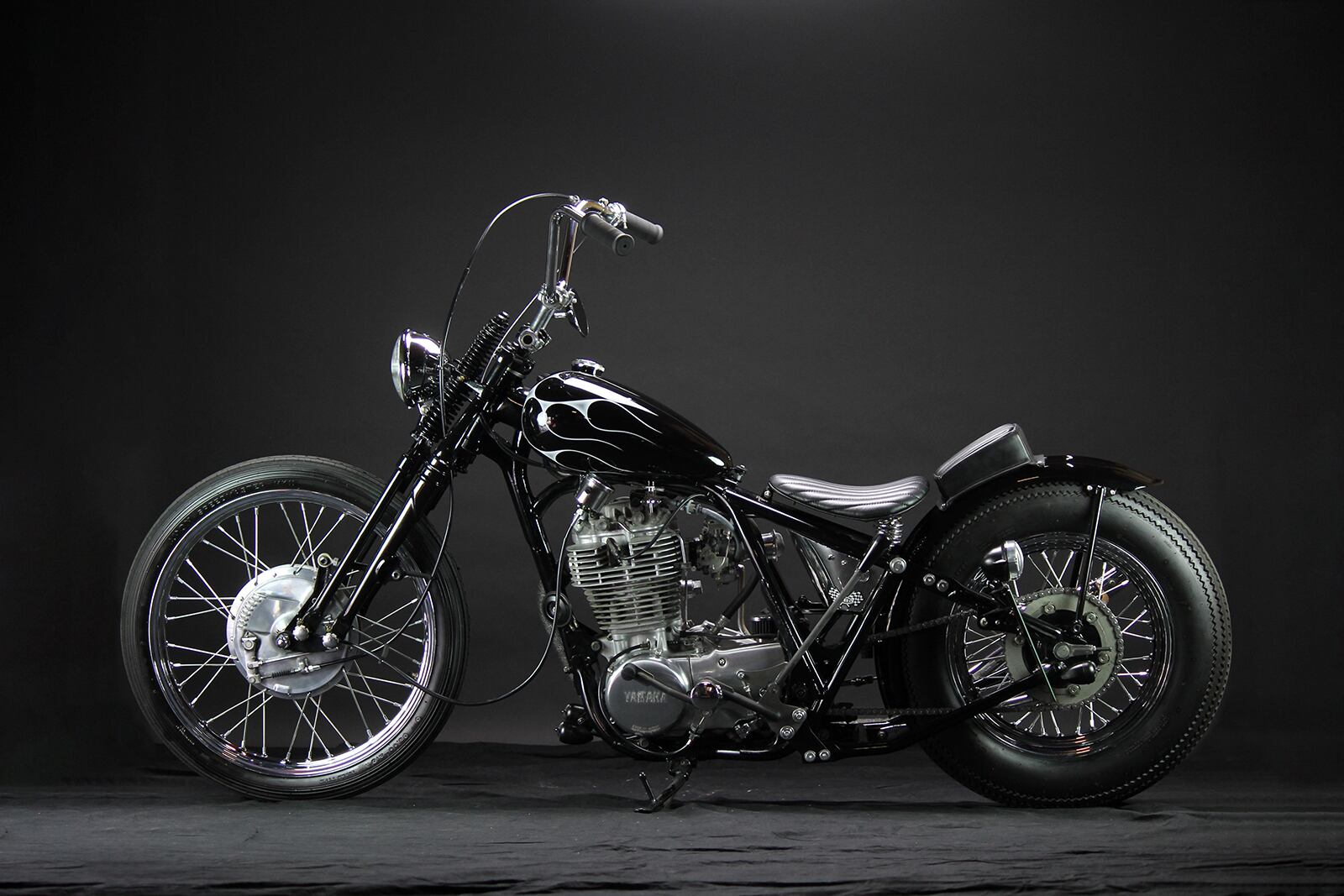

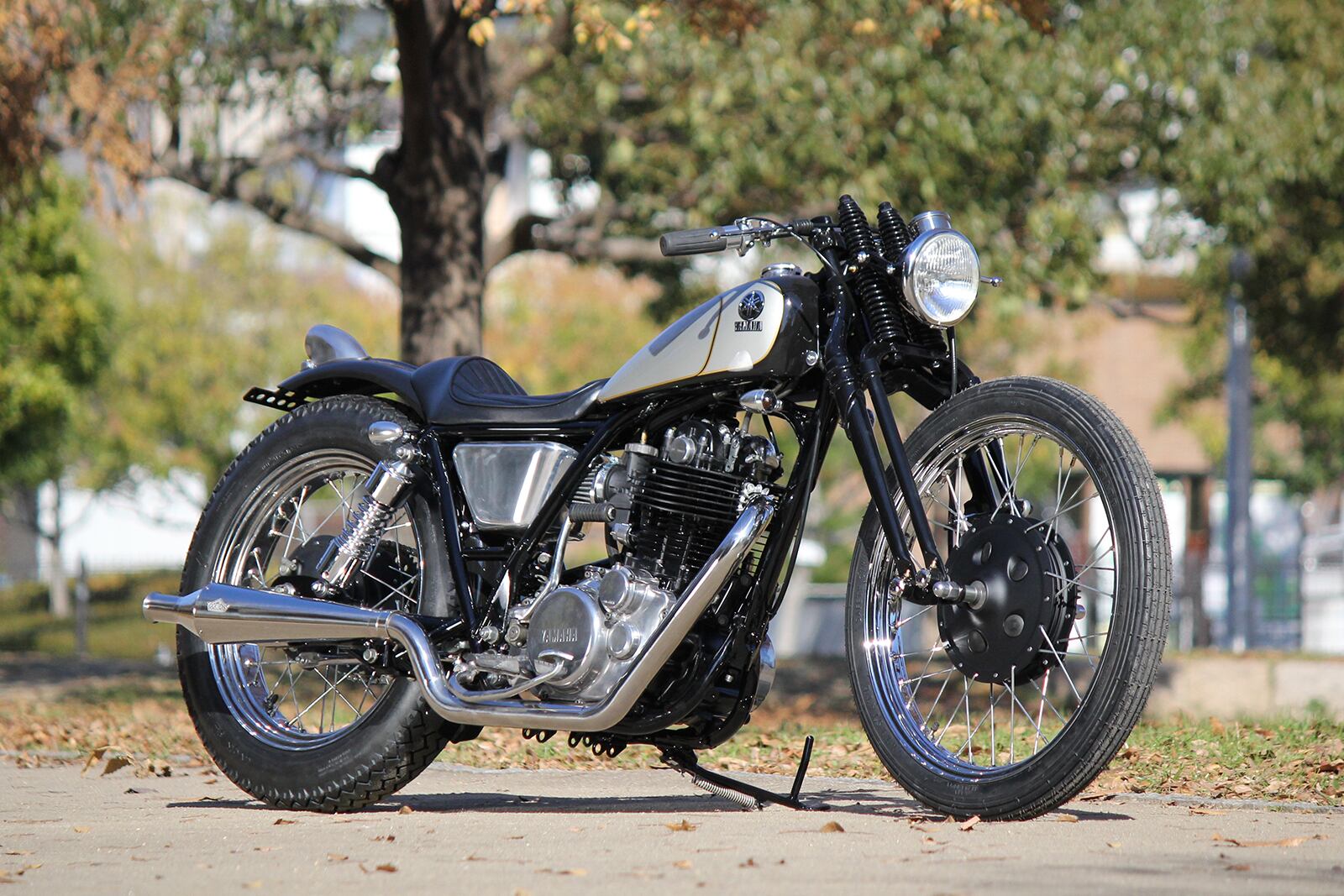

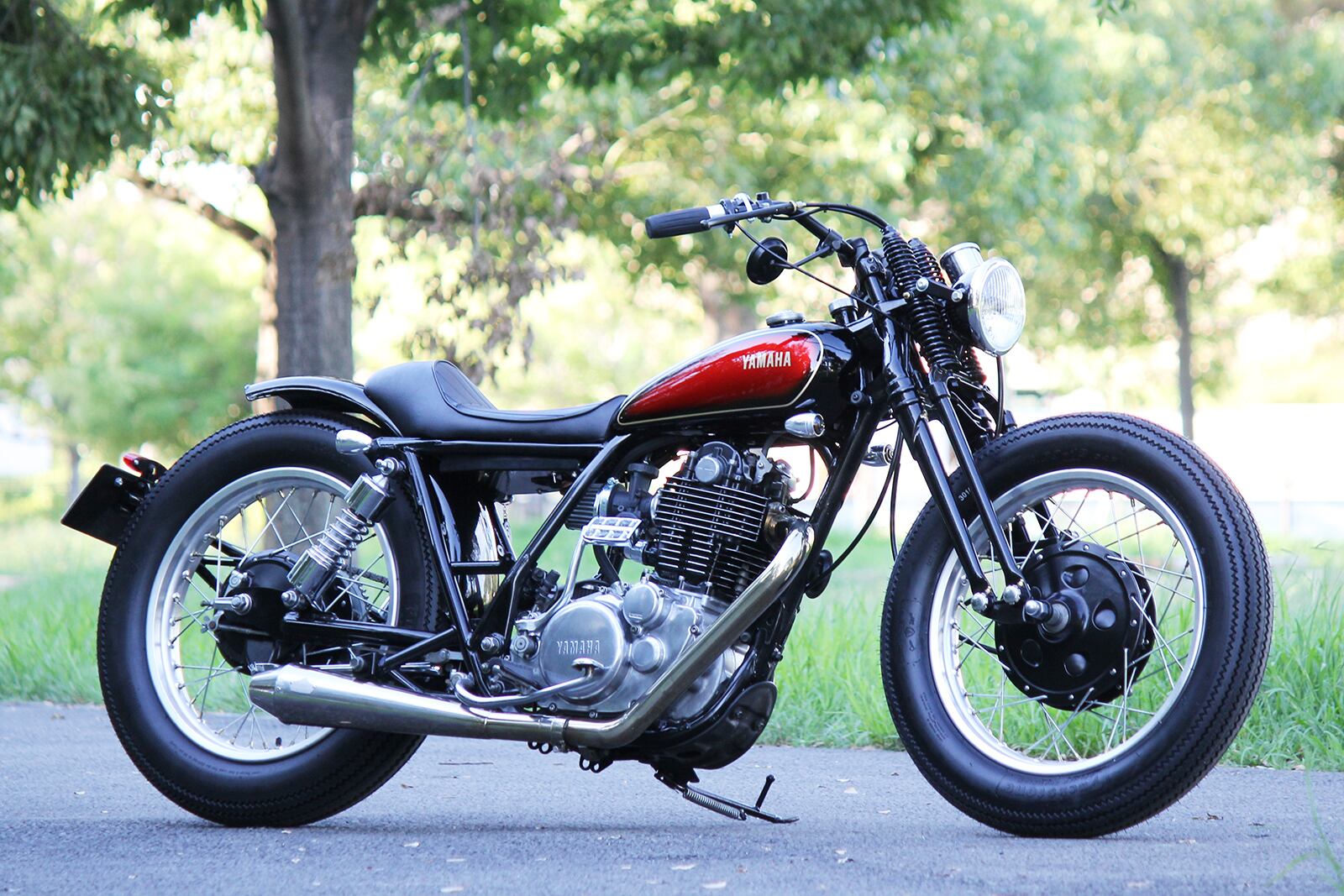

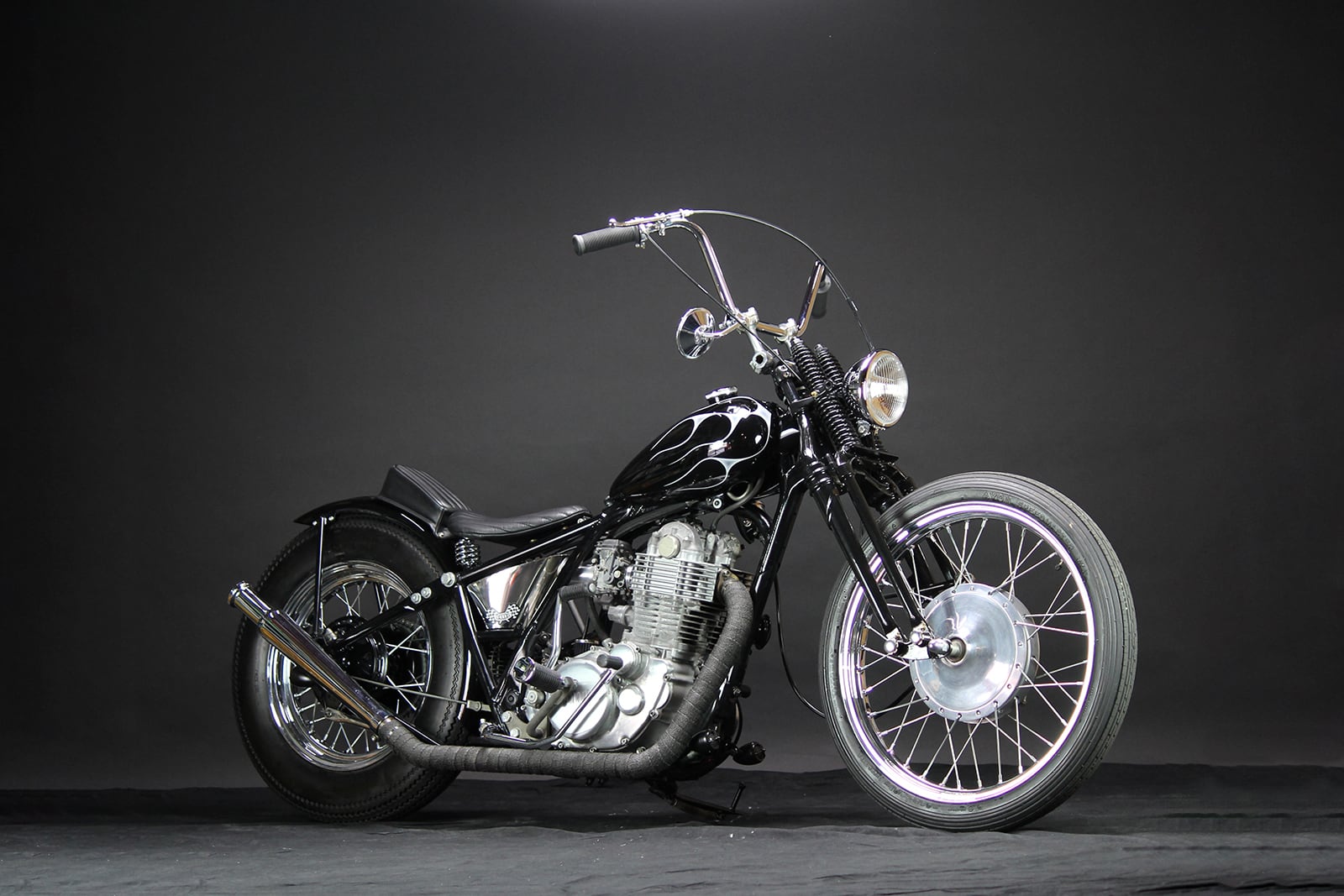

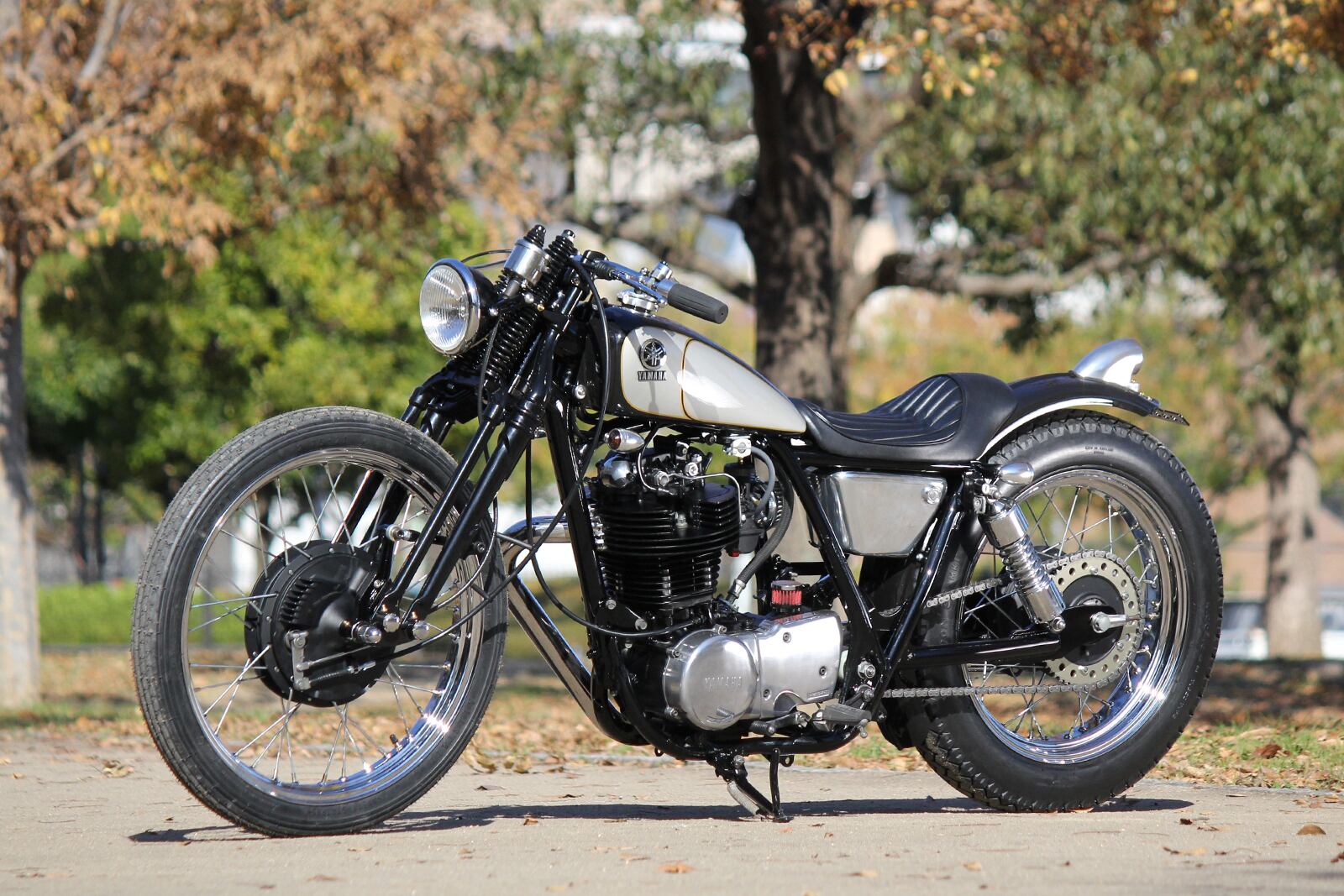

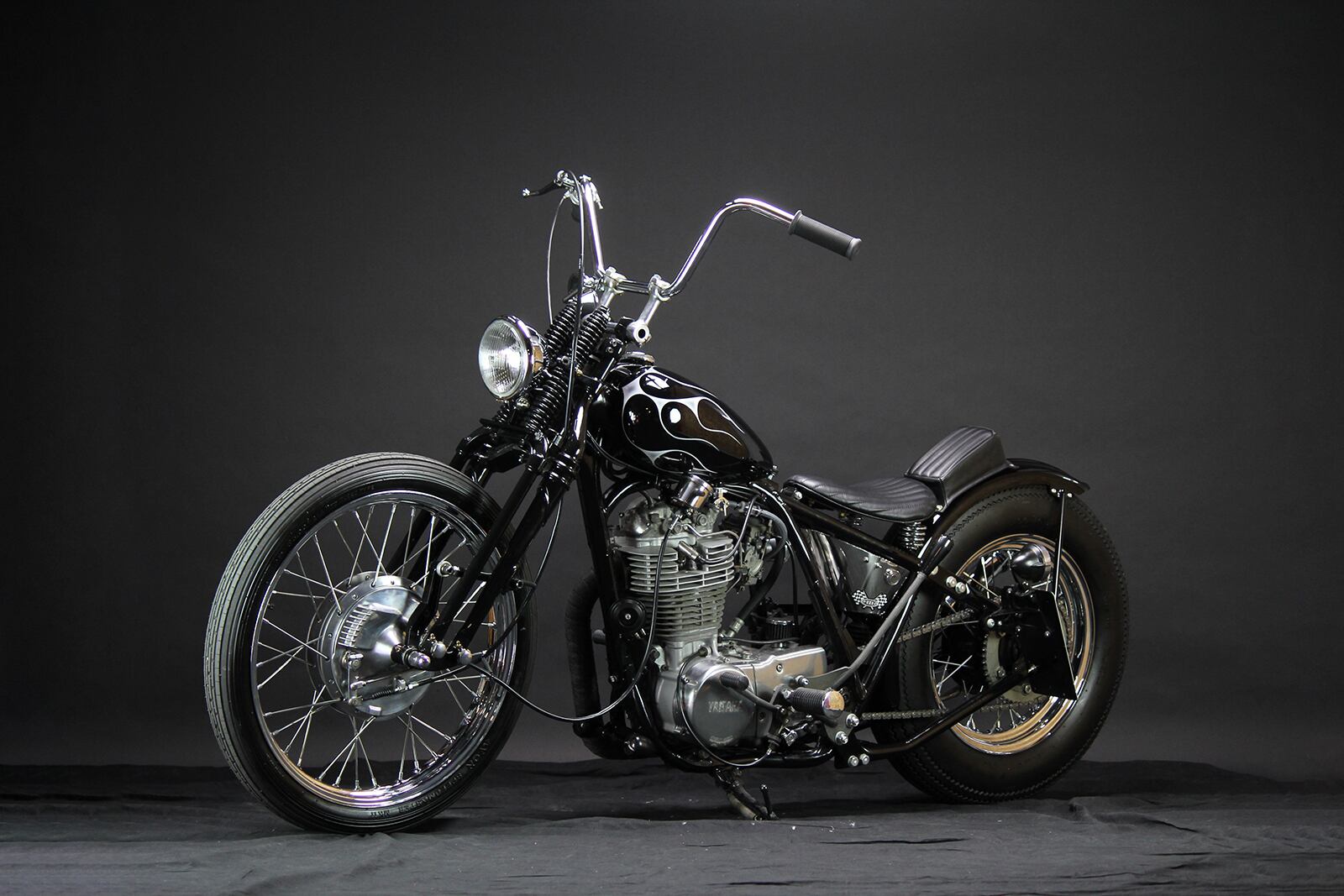

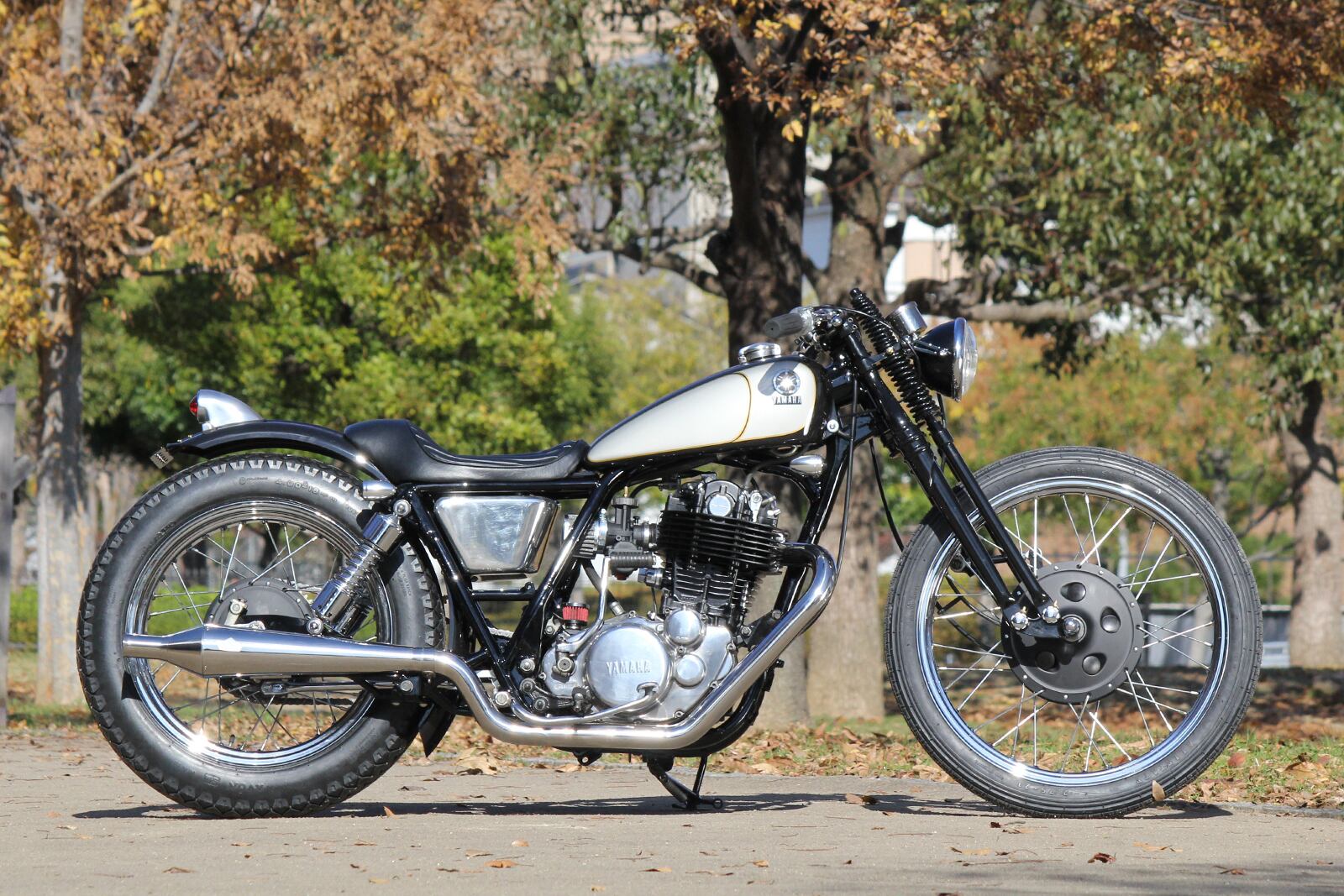

Springer fork for SR400/500 (for drum brake model).
Stock size.

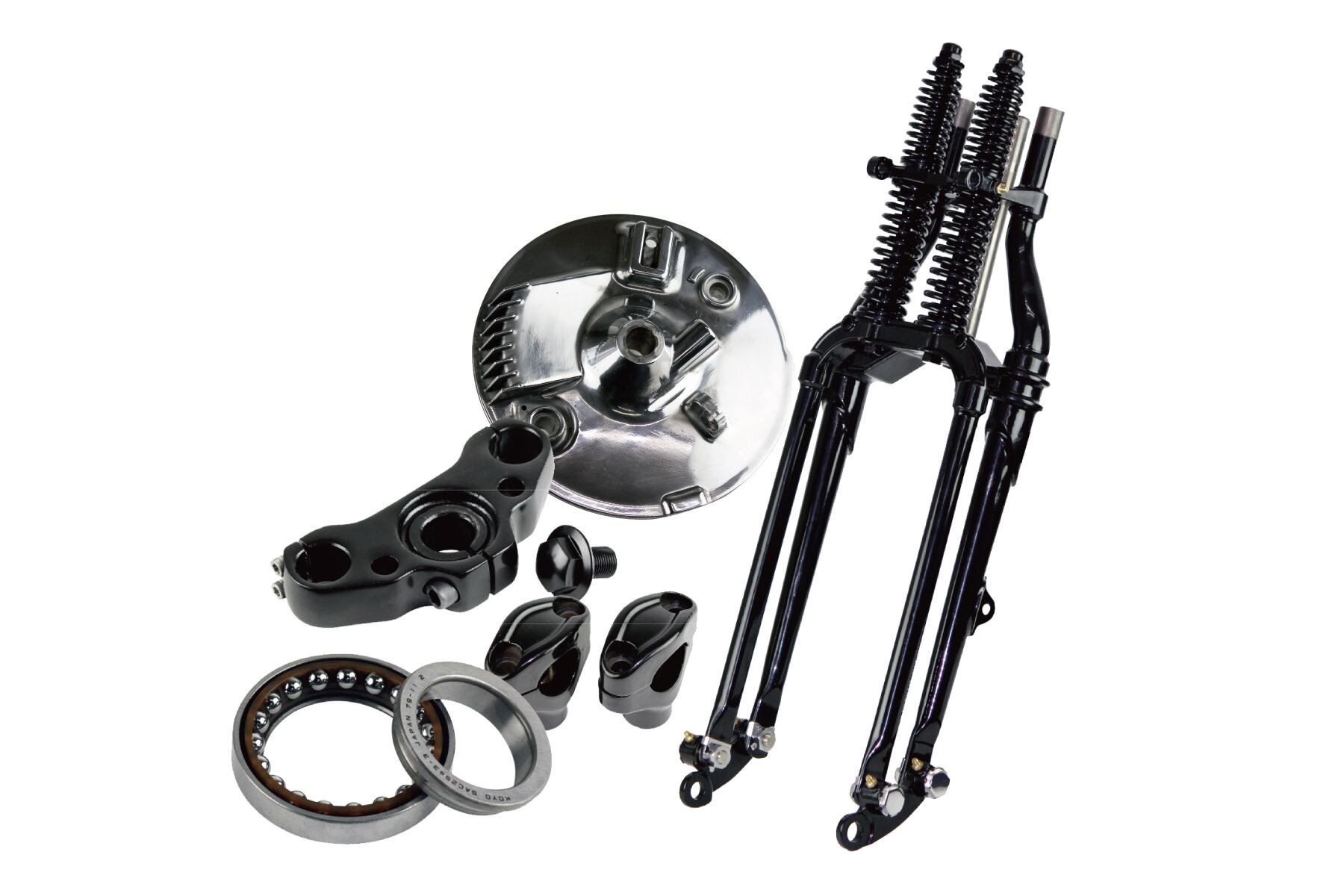

* This set includes a brake panel.
If you want to modify the brake panel by yourself, the price is 33,000yen cheaper.

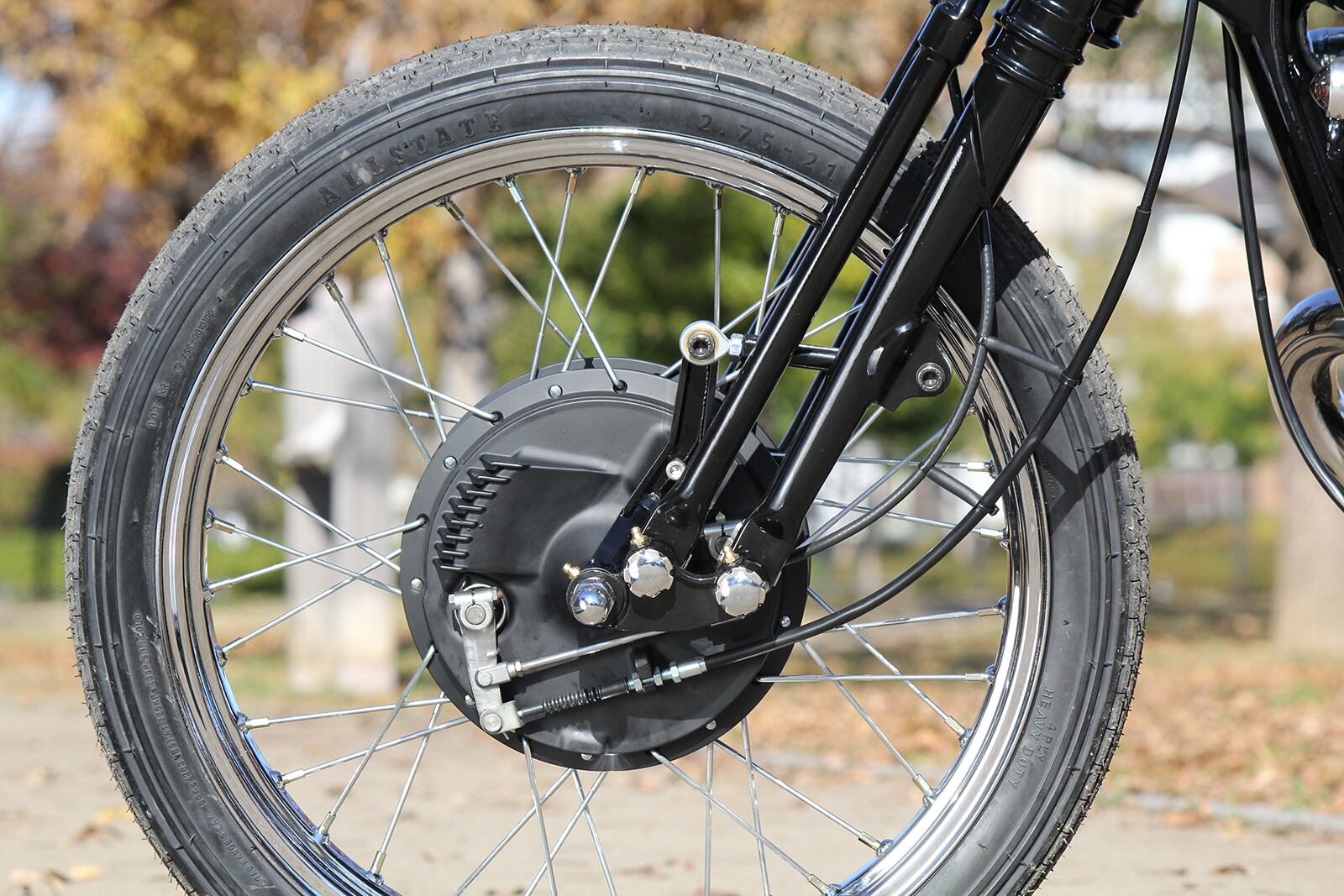

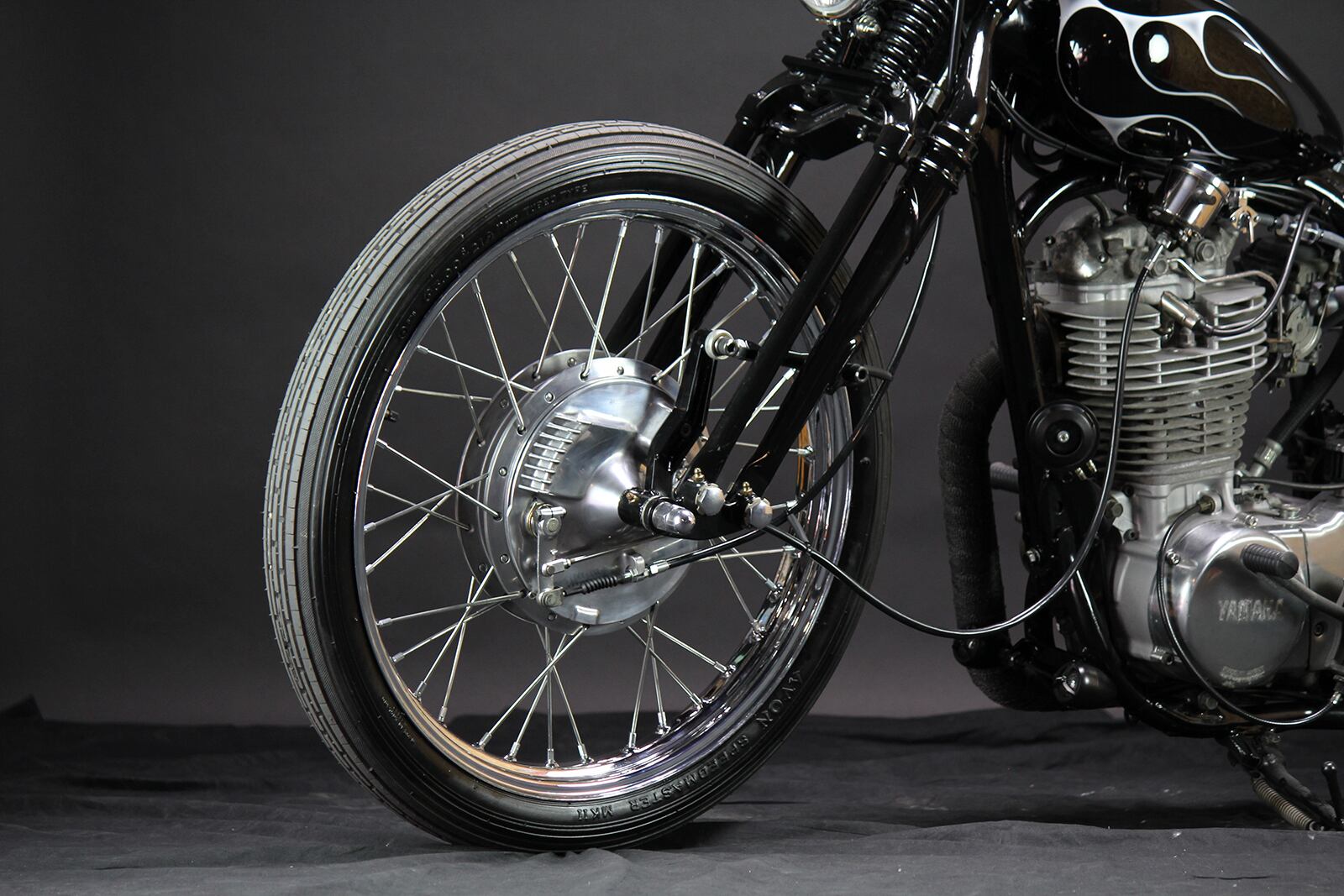

The brake panel of the drum brake is floating and has a structure that does not interfere with the movement of the fork.
In order to attach a regular 74 Springer to an SR, there were many structures where a handle stopper was attached to the main frame, but this product is a mold with a redesigned shaft offset.
It is bolt-on with no frame processing required, has a cutting angle that is sufficient for practical use, and has a realistic cost setting.

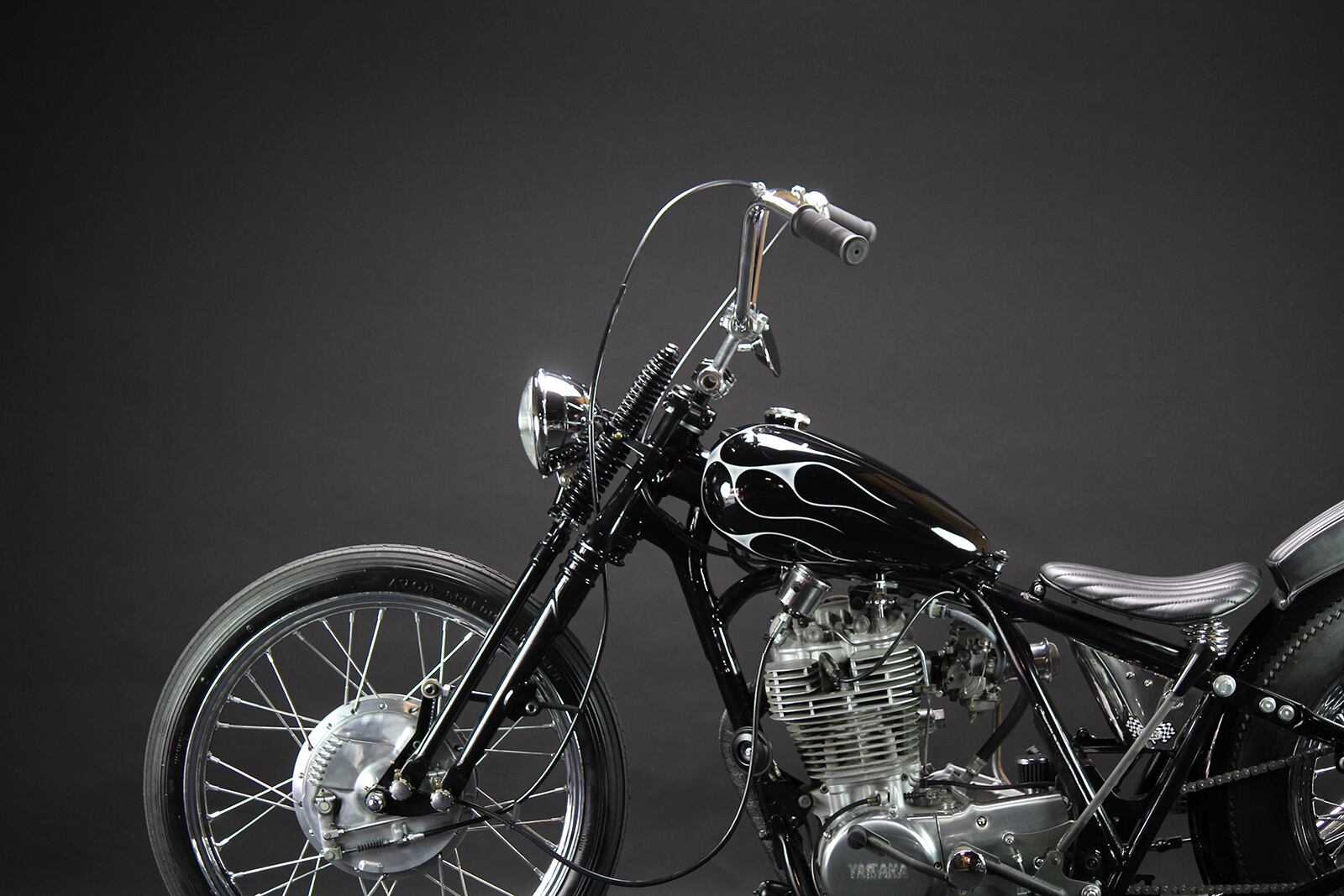

The top tee (top bridge) is also a special casting design, and the special riser allows for a wide range of styles from compact handlebars to classic styles.
<Notes>
*~1JR-341851 stem bearing is for vehicles with loose ball bearings, or for vehicles with loose ball bearings. Only on the upper bearing race.
If you are replacing the bearing, frame side race, and lower bearing, please use the genuine one.
*1 For vehicles with stem bearings from JR-341852 onwards that have angular bearings, or vehicles that have been replaced with angular bearings, please use the 74 Springer Fork KIT for angular bearings G5-00300 and G5-00301.
*Original bearings will change before and after the 99 model year of the above body number. Even in compatible model years, angular bearings are often replaced with later model angular bearings during maintenance, so we recommend that you disassemble and check them first. The upper bearing race of this product is a special product that has been lathed to match the stem shaft.
[Size]
From the bottom of the understem to the axle shaft: Approx. 460mm Width: Approx. 212mm
[Material]
Steel
NOTE-------------------
*There are restrictions on shipping size depending on the country you are shipping to.
*If the size limit is exceeded, the shipment may not be possible.
*Gas tanks and suspensions may not be shipped by air.
*If the shipment is refused, we will change to shipping by sea.
*If a country cannot be shipped by sea, the order itself may be cancelled.
----------------------
[IF THE ITEM IS SOLD OUT]
Please click "request restock notification".
* Please feel free to contact us if you need to know the delivery date.
*Payments will be paid in Japanese yen. The price in the foreign currency is a rough estimate.
*Tax included.
*Shipping fee is not included.More information
*Japan domestic shipping fees for purchases over ¥30,000($201.00) will be free.
*This item can be shipped outside of Japan.
